DESCRIPTION

Basic Info

Model NO.	YNK450-HSV
Automatic Grade	Half Servo
Certification	CE
Condition	New
Place of Orign	Fujian, China
Certification of Factory	CE
Voltage	380V
Product Type	Diaper Machine
Model Number	Ynk450hsv
Diaper Machine Color	Sliver or Blue
After-Sales Service Provided	Overseas Third-Party Support Availbable
Processing Type	Laminating Machine
Delivery Details	120days
Transport Package	Antirust Oil/ PE Film Cover / Seaworthy Wooden Box
Specification	CE, ISO
Trademark	NISO
Origin	Fujian, China
HS Code	8441809000
Production Capacity	30sets

Product Description

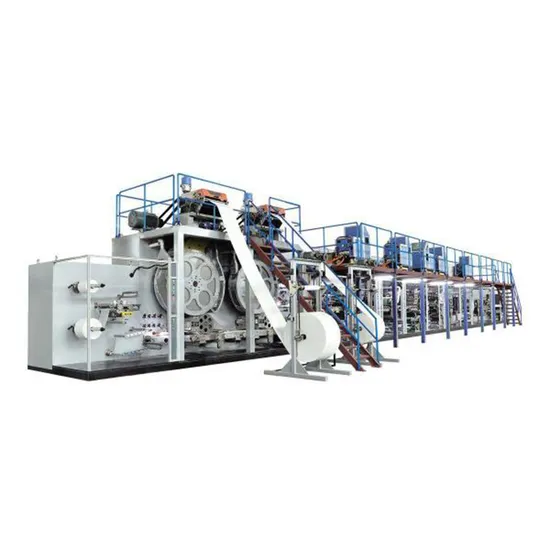

Full-automatic High Speed Baby Diaper Making Machine with YNK450-HSV

Parameter of baby diaper machine

model	driven mode	speed(PCS/MIN)	weight(T)	capacity	machine size(L*W*H)
YNK500SV	full servo driving	500-600	105	330kw	31*8*5.5m
YNK450HSV	semi-servo driving	400-450	79	240kw	27*8*5.5m
YNK400FC	inverter driving	400-450	62	190kw	27*8*5.5m

Functions and features of baby diaper machine:
1)The machine can produce 4 sizes of I shape, T shape baby diapers.
2)Crusher system adopts hard alloySaw blade head, can crush all kinds of fluff pulp, crushing capacity can up to 600-1000KGS/Hour.
3) Double fluff core drum forming system ,with long fiber and better absorbent capacity.
4) SAP feeding adopts frequency converter controlling system. Parameter of grams can be set on the touchable screen.
5)The machine produce I shape or T shape type baby diapers, which include the following devices:
a) Fluff pulp wrapping and continuous pressing unit.
b) Top sheet non-woven feeding system
c) Leg cuff system
d) Bottom film feeding system
e) Frontal tape feeding and side tape feeding system
f)Side tape inner-folding system
g)Arc shape cutting system
h)Product vertical folding and product final cutting system
i) Product arranging-out.
Optional device:
1:Perfume spraying unit
2:Wetness display function


Main technical parameters of baby diaper machine
1) Model: YNK450-HSV
2) speed: 400-450m/min
3) capacity: 330KW (380V 50Hz)
5) Breaker Capacity: 400A
6) Electric wire:3x70mm2+1x25 mm2+1x16mm2
7) Machine size:(31*8*5.5)M(L×W×H)
8) Machine weight:28.5T
9) Air compressor:1.5m3/min
10) Product size: S, M, L,XL,
11)Container:2x40HQ

Other raw materials of sanitary pads& diapers available:

1.PE film and cloth-like film materials
2.PP/MAGIC Side/Frontal Tape
3. Hot-melted glue(Spandex/Structure)
4.FLUFF PULP(treated/untreated,SAP)
5.Jumbo tissue paper(Upper/Lower Tissue Papdsxer)
6.Non-Woven (Topsheet-Hydrophilic N.W./ leakage-Hydrophobic N.W.)
7.Spandex
8.Release tape for sanitary napkin
9.Released paper (winged/back of sanitary pad)
10.Sap absorbent paper
11.Outside PE bags/Polybags
12.Elastic waistband
13.ADL

Your inquire will be replied within 24hours
